This Power Pack is suitable for where a single motor is used for lift and thrust (Image as guide only) on the Griffon-600, Mk.1 & Mk.2* Sirius-600 models.
This pack can also be used for thrust on the Griffon-2000 TDX model providing the thrust propeller is 8" or less (Please advise if used on Griffon-2000 so that the 7" propeller is replaced with an 8" diameter propeller)

Power Pack contains:-
1400 Kv Out-runner Brushless Motor
40 ESC Forward only
7" Inch Propeller as standard
Prop Adapter

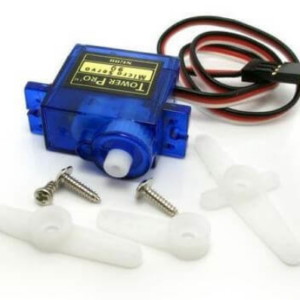

Mini Servo
Servo Extension Lead

Important: Screws supplied with motor are not suitable for mounting the motor within the plastic duct, please source M3 x 8mm long countersunk screws at the link below. Maximum stick through into the Motor is 4mm, any more than this then you may damage the windings.
M3 x 8mm Cuntersunk screws

* Mk.2 Sirius-600 will require the purchase of a splitter plate to help divert the thrust air into the skirt area

Note: This is a forward only ESC and requires the Transmitter stick (without spring) to be at the bottom of its travel for the ESC to sense its zero position, ie stick pointing towards the base of the TX
